Chapter 37 — Remote Network Templates, Device Groups & Zone Mapping

Before onboarding any branch site, three prerequisite steps must be completed: verifying the predefined template and device group are present, creating the security zones for branch traffic, and mapping those zones to the Prisma Access Trust/Untrust classification.

Step 1 — Verify the Predefined Template and Device Group

Navigation: Panorama > Cloud Services > Configuration > Remote Networks

Confirm that both the predefined objects created at onboarding are present and selected:

If either is missing, re-check the Prisma Access onboarding in Chapter 27 — they are created automatically and should not need manual action.

Strata Cloud Manager: the equivalent predefined objects are the SCM Folder structure confirmed in Chapters 32, 33, and 35 — see those chapters for the confirmed folder names and how they map to Panorama's templates and device groups; not repeated here.

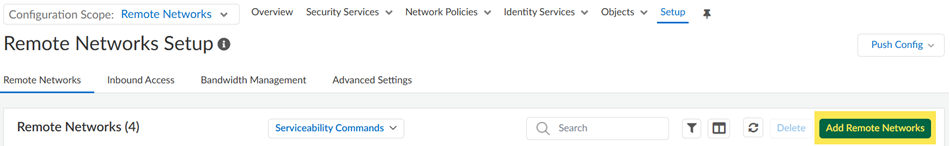

📷 PaloAlto screenshot — Remote Network Templates & Device Groups validation

Step 2 — Create Branch Security Zones

Remote network traffic requires two custom zones in the template — one for trusted (internal DC/branch) traffic and one for untrusted (internet) traffic. The conventional names are:

Navigation: Panorama > Network > Zones (with Remote_Network_Template selected in the template drop-down)

Create both zones: 1. Click Add 2. Enter zone name (Remote-Trust, then Remote-Untrust) 3. Leave zone type as Layer 3 4. Click OK

⚠️ Do not name zones trust or untrust — these are reserved Prisma Access zone names (see Chapter 36). Use Remote-Trust and Remote-Untrust or any custom non-conflicting names.

flowchart TD
    BRANCH["🏬 Branch CPE<br/>(IPSec tunnel)"]
    RN_SPN["RN-SPN<br/>(Prisma Access)"]
    ZT["Remote-Trust zone<br/>→ DC / branch traffic"]
    ZU["Remote-Untrust zone<br/>→ internet traffic"]

    BRANCH --> RN_SPN
    RN_SPN --> ZT
    RN_SPN --> ZU

Using an existing template: If you already have a template with zones defined, add that template to the Remote_Network_Template_Stack instead of creating zones in the predefined template.

📷 PaloAlto screenshot — Creating zones in Remote_Network_Template

Strata Cloud Manager — open question, not confirmed: Chapter 36 already confirmed the zone model itself (Trust, Untrust, reserved names) is platform-agnostic, so whatever mechanism SCM uses, the destination classification is the same. What's genuinely unconfirmed is the mechanism: the primary Remote Networks onboarding documentation describes detailed Panorama zone-creation steps (Network > Zones, selecting the template, adding zones), but the parallel SCM onboarding steps documented there (Site Name, Prisma Access Location, IPSec Termination Node) make no mention of zones at all — and no dedicated SCM zone-configuration page for Remote Networks was found despite a direct fetch and two targeted searches. This could mean zone assignment is inline elsewhere in the SCM workflow, that it's handled automatically/predefined, or simply that the documentation has a gap here — it is genuinely unclear which, and stating a specific mechanism with confidence would not be accurate. Treat this as an open item rather than assume the Panorama flow above carries over as-is.

Step 3 — Map the Zones

Navigation: Panorama > Cloud Services > Configuration > Remote Networks > gear icon (Zone Mapping)

Map each custom zone to the appropriate Prisma Access classification:

All zones default to Untrust until mapped — security policies won't match correctly until zone mapping is complete.

📷 PaloAlto screenshot — Zone mapping for Remote Networks

Strata Cloud Manager: the reserved-names warning above applies identically — see Chapter 36 for the confirmed platform-agnostic zone model, not repeated here. Whether SCM has a distinct "zone mapping" step separate from zone creation, or classifies zones as Trust/Untrust inline at the point of creation, is tied to the same open question flagged in Step 2 above — not confirmed either way from available documentation.

Commit & Push

After completing zones and zone mapping:

1. Commit > Commit and Push
2. Edit Selections → Select Prisma Access → Remote Networks
3. Click OK → Commit and Push

This push applies the zone configuration to the Prisma Access infrastructure. Bandwidth allocation and site onboarding (Chapters 38–41) follow after this push completes.

Strata Cloud Manager: Commit is replaced with Push Config, the same terminology already established in Chapter 28 — not re-explained here.

Key Takeaways

• Verify Remote_Network_Template_Stack and Remote_Network_Device_Group exist before proceeding
• Create two zones in Remote_Network_Template: Remote-Trust and Remote-Untrust (or equivalent custom names)
• All zones default to Untrust — explicitly map Remote-Trust → Trust and Remote-Untrust → Untrust
• Push scope must include Remote Networks, not just Service Setup
• Scale: up to 25,000 remote network sites per tenant (Prisma Access 5.2+)
• Predefined objects (Step 1) and the zone model/reserved names (Step 3) map to SCM the same way confirmed in Chapters 32, 33, 35, and 36; SCM's actual zone-creation mechanism (Step 2) is an unconfirmed open question, not assumed to match Panorama's flow
