Chapter 11 — Branches and HEAD

Branching is one of Git's most powerful features and one of its most misunderstood. In many older version control systems, creating a branch meant copying the entire project — an expensive, slow operation. In Git, a branch costs almost nothing. Understanding why requires looking at what a branch actually is under the hood.

Commits as a Chain

Every commit (except the first) points to its parent. This forms an immutable chain of history stretching back to the root commit.

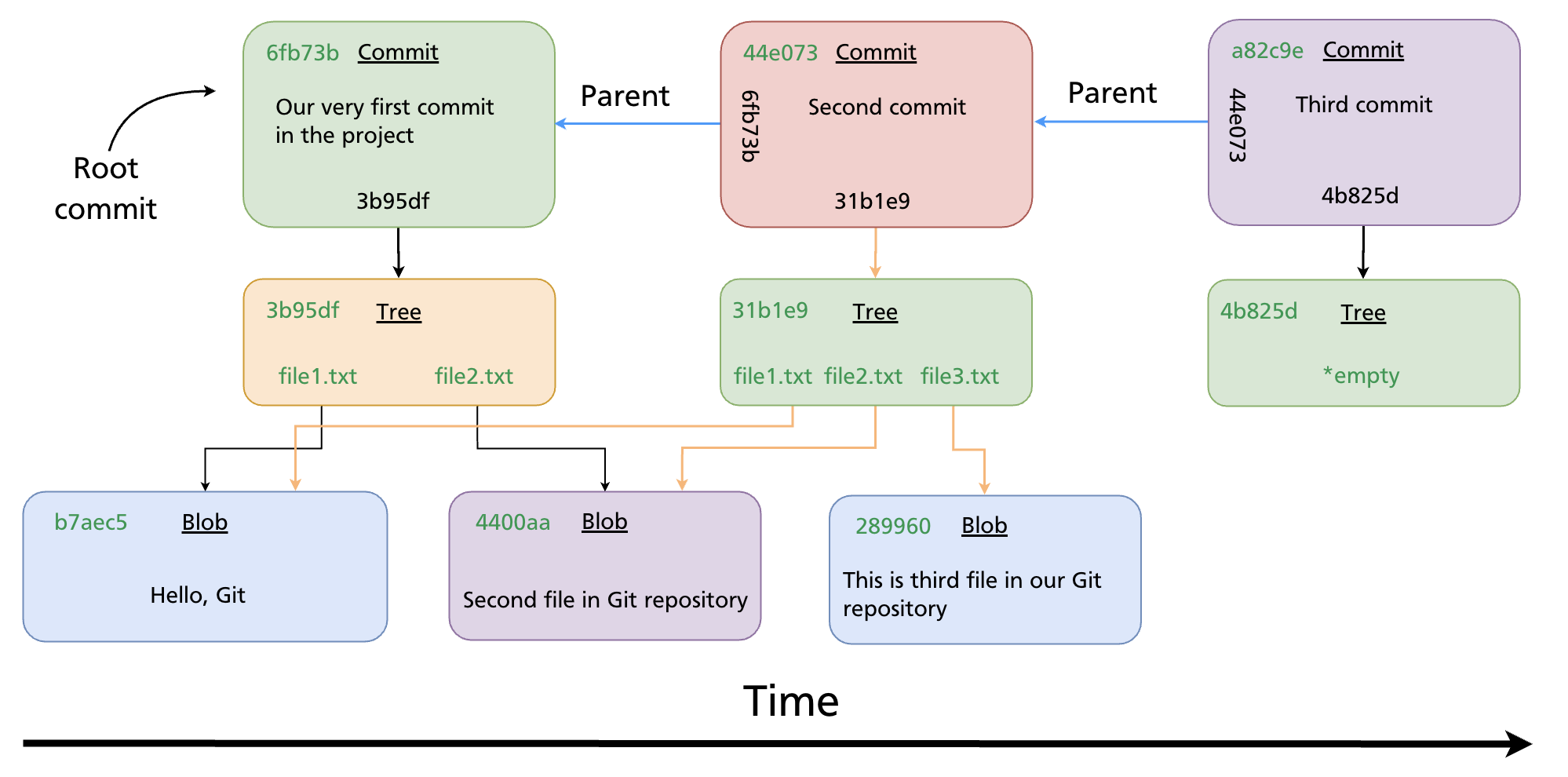

Three commits in a timeline, each pointing to its parent

Each commit stores: - A pointer to a tree (the project snapshot) - A pointer to its parent commit (or two parents, in a merge) - Author, committer, message, and timestamp

This chain is the repository's history. Branches and HEAD are simply names that point into this chain.

What a Branch Is

A branch is nothing more than a text file containing a 40-character commit SHA. That is all.

When the main branch points to commit 44e073, Git's .git/refs/heads/main file contains:

44e073...

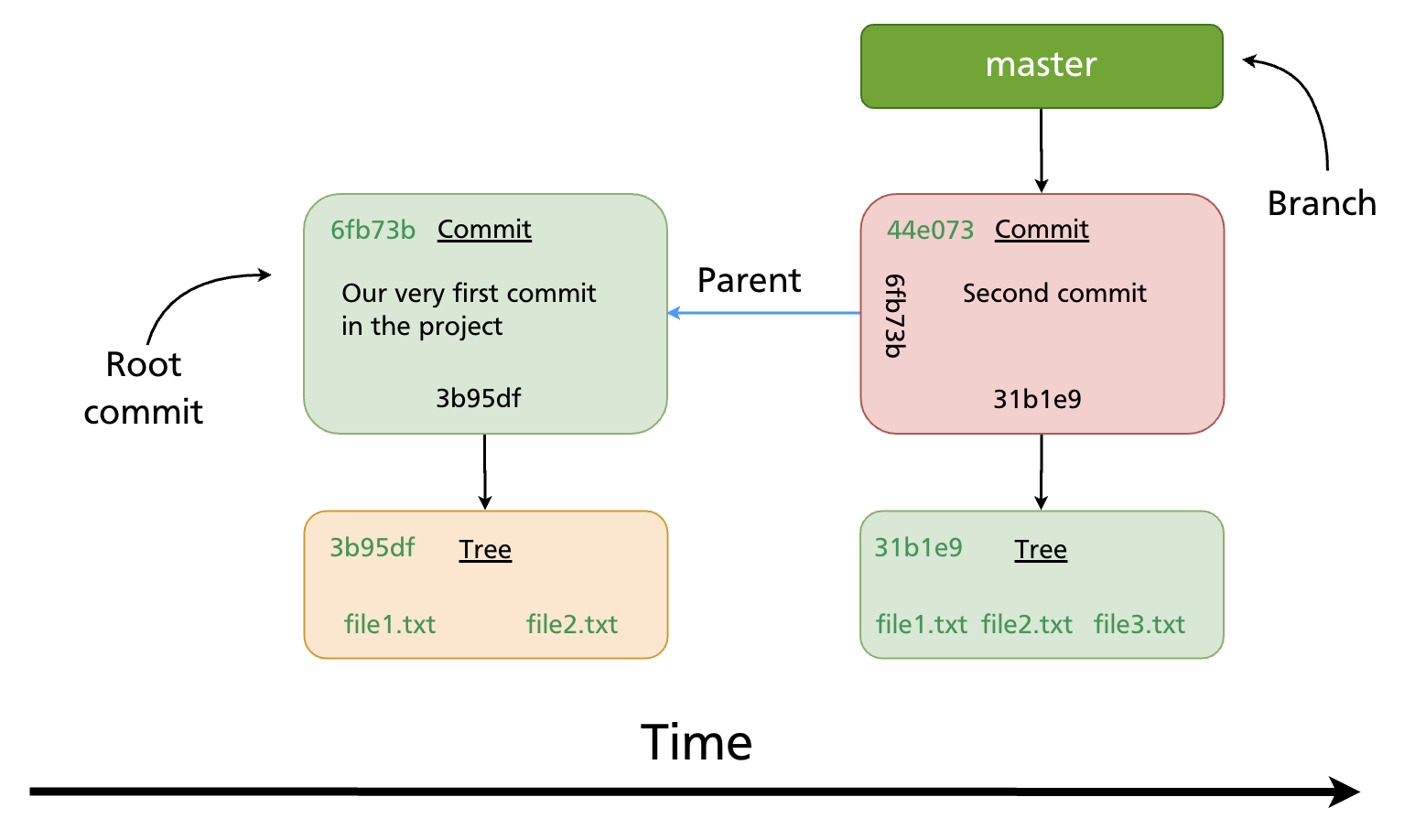

The master branch pointer pointing to the latest commit

Key properties of branches (from the vault source):

  1. The default branch is main (or master in older repositories)
  2. Multiple branches can exist in the same repository simultaneously
  3. All branch pointers are stored in .git/refs/heads/
  4. The current branch tracks new commits automatically — when you commit, the branch pointer advances to the new commit
  5. You switch branches with git checkout <branch> or git switch <branch>

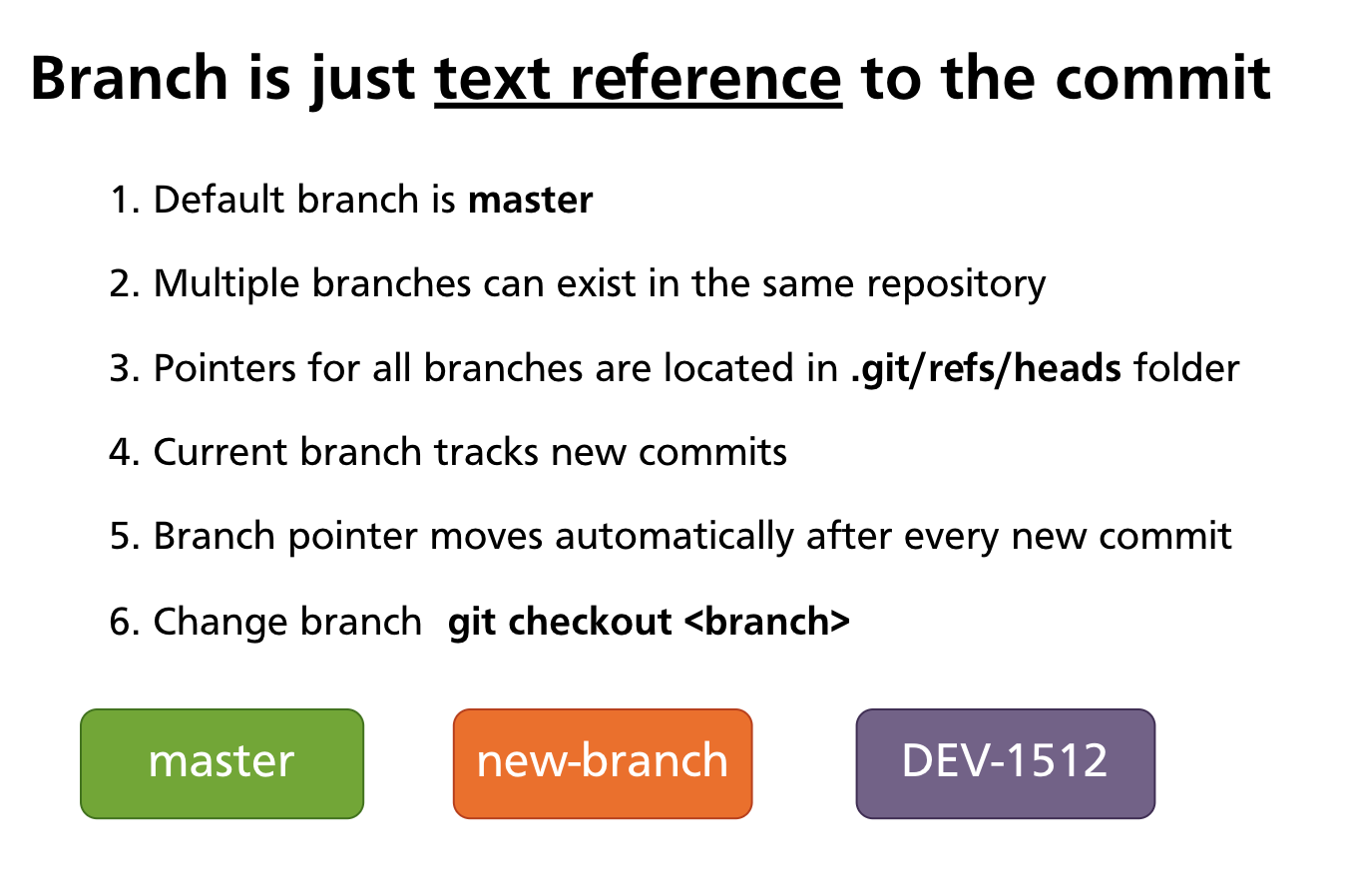

A branch is a text reference to a commit SHA, stored in .git/refs/heads/

Because a branch is just a pointer, creating a branch is instantaneous and uses almost no storage — Git writes a single small file. This is why Git encourages frequent branching; there is no meaningful cost to it.

HEAD — Your Current Position

HEAD is a special reference that tells Git where you are right now. It is stored in .git/HEAD.

Most of the time, HEAD points to a branch name (not directly to a commit). The chain is:

HEAD → branch → commit

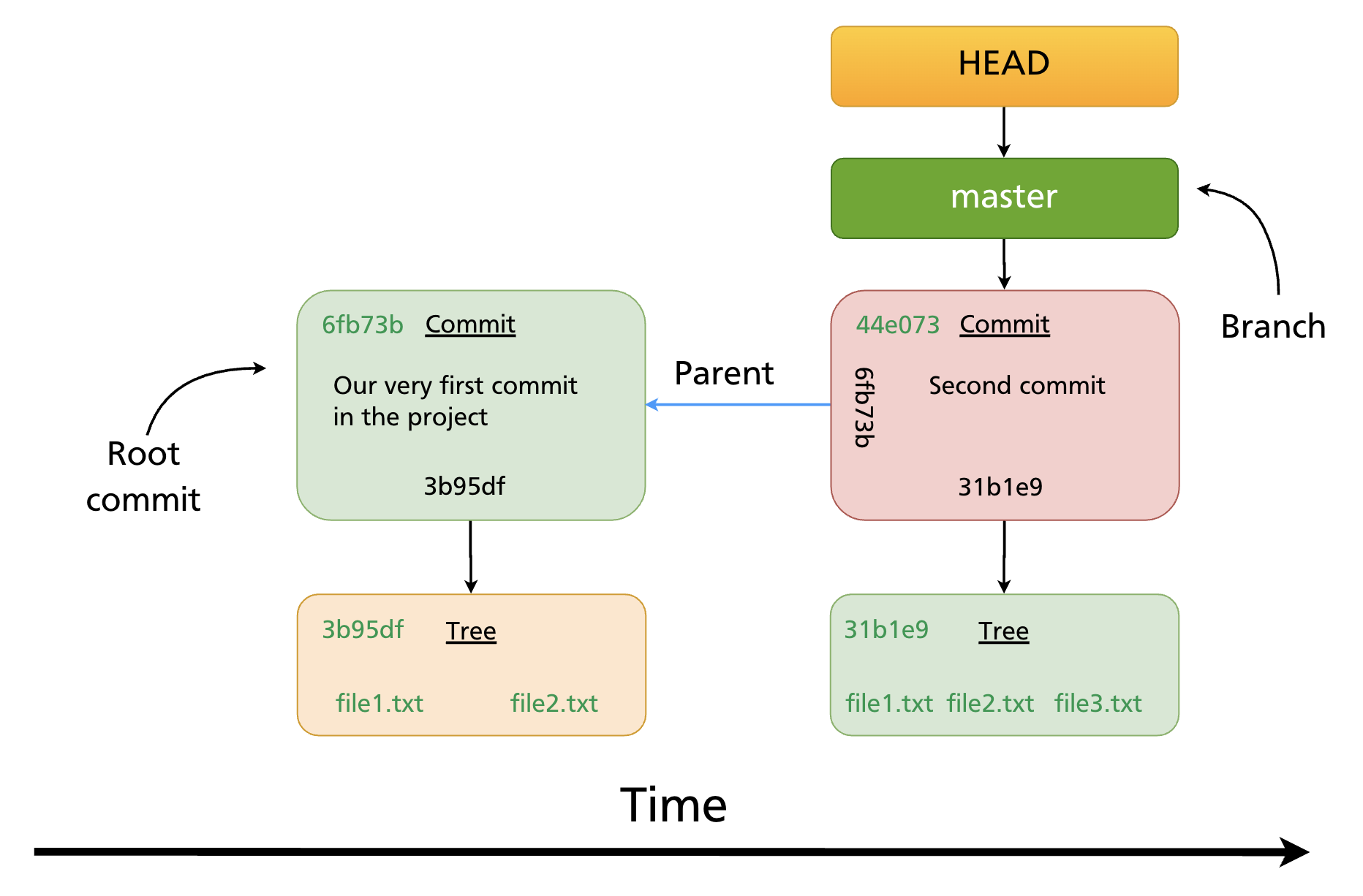

HEAD pointing to master, which points to a commit

Five things to know about HEAD:

  1. HEAD is locally significant — it only exists on your machine
  2. The pointer is stored in .git/HEAD
  3. By default its content is ref: refs/heads/main (or master)
  4. git checkout <branch> changes HEAD to point to that branch
  5. git checkout <sha> points HEAD directly at a commit (this is detached HEAD — covered in Chapter 16)

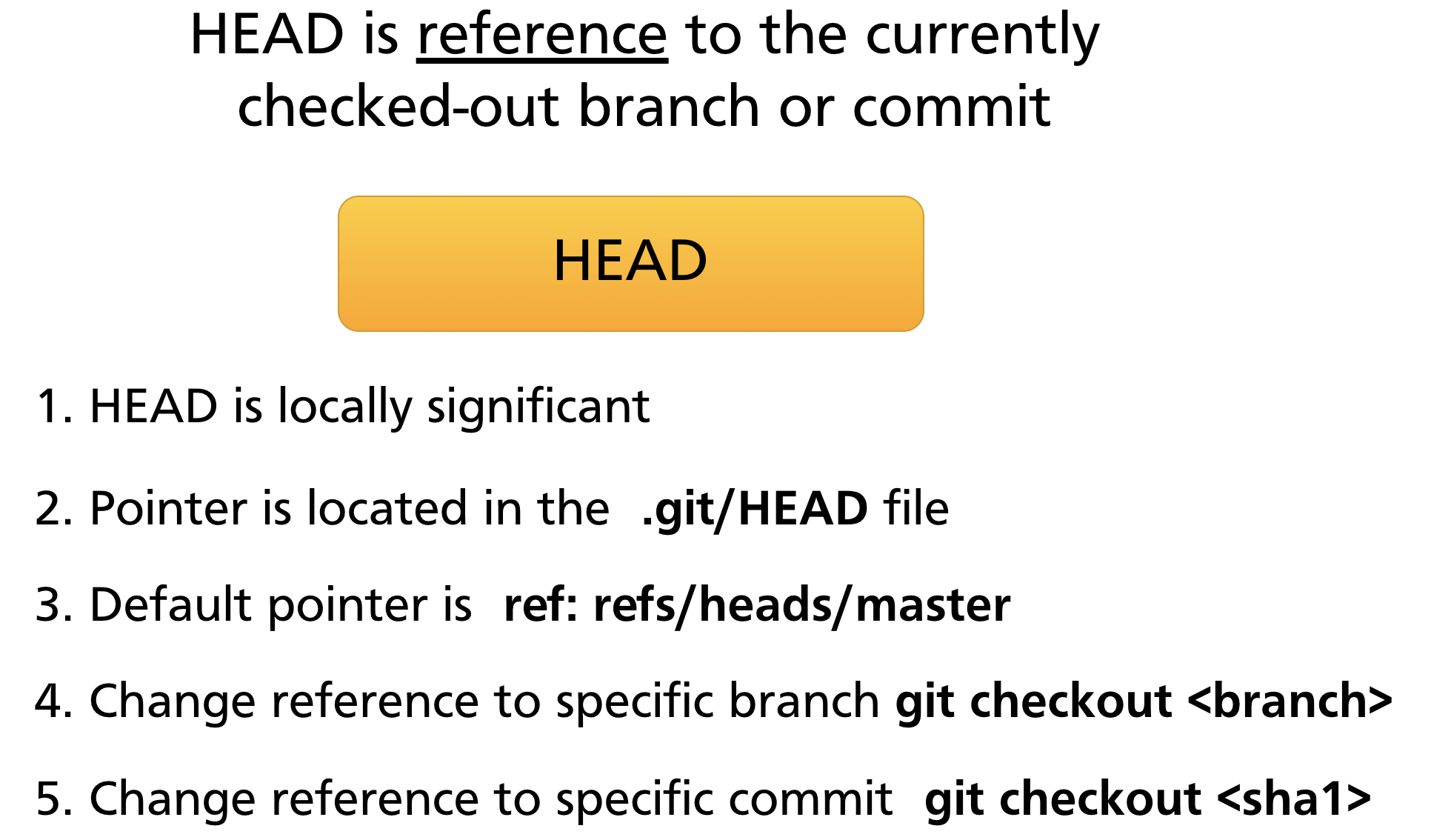

HEAD as a reference to the currently checked-out branch or commit

HEAD follows commits automatically

When you make a new commit, the branch HEAD points to advances to the new commit. HEAD itself does not change — it still points to the same branch, but that branch now points further forward.

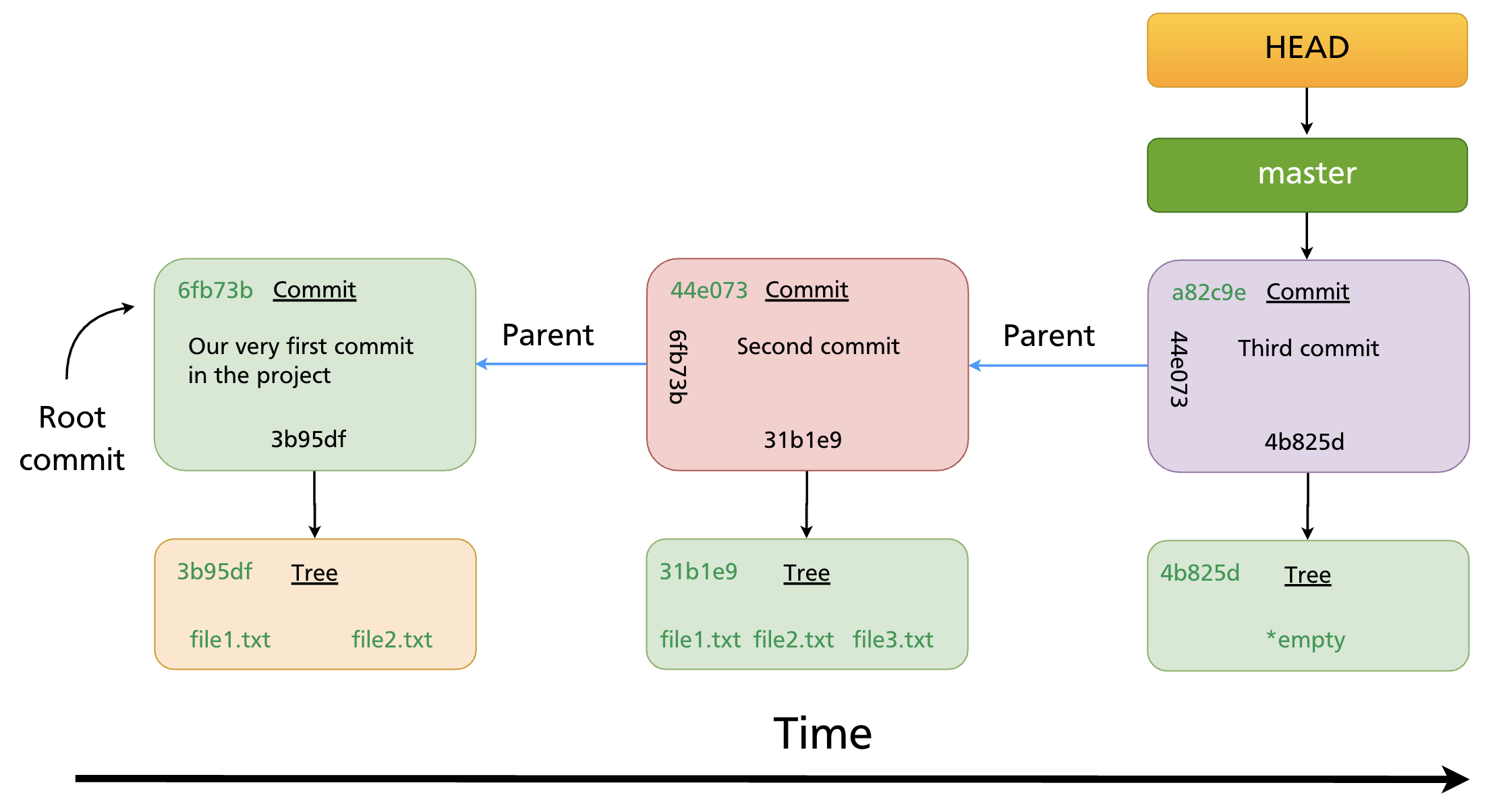

HEAD → master → three commits in a timeline

Multiple Branches

A repository can have as many branches as you need, each pointing to a different commit. HEAD determines which one is active.

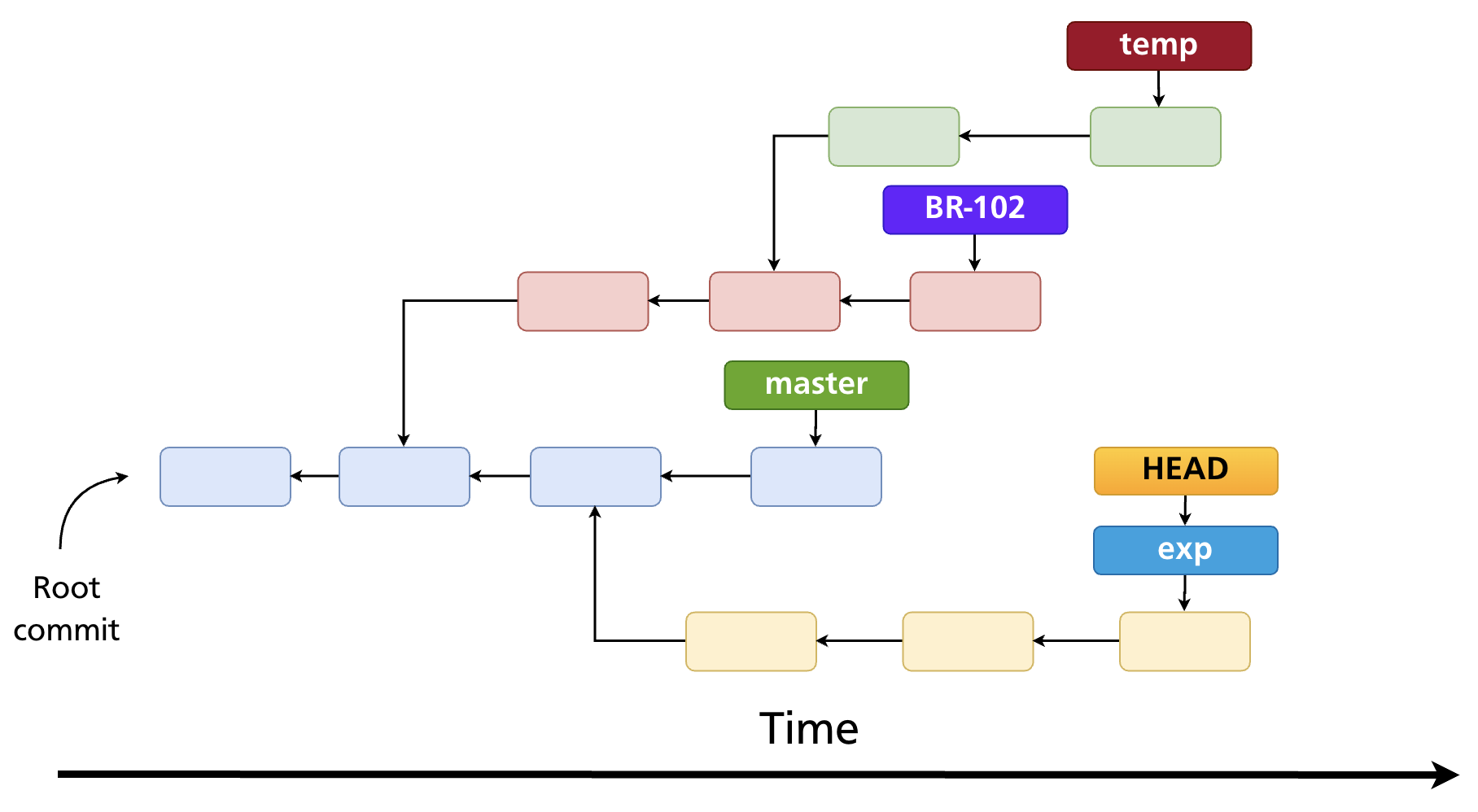

Multiple branches (master, BR-102, temp, exp) each pointing to different commits

In this diagram, HEAD is pointing to exp — that is the active branch. New commits will advance exp; all other branch pointers stay fixed.

Branch Management Commands

List branches

git branch               # list local branches; current branch marked with *
git branch -a            # list local + remote-tracking branches
git branch -v            # list with last commit SHA and message

Create a branch

git branch feature-x     # create at current HEAD (does not switch)

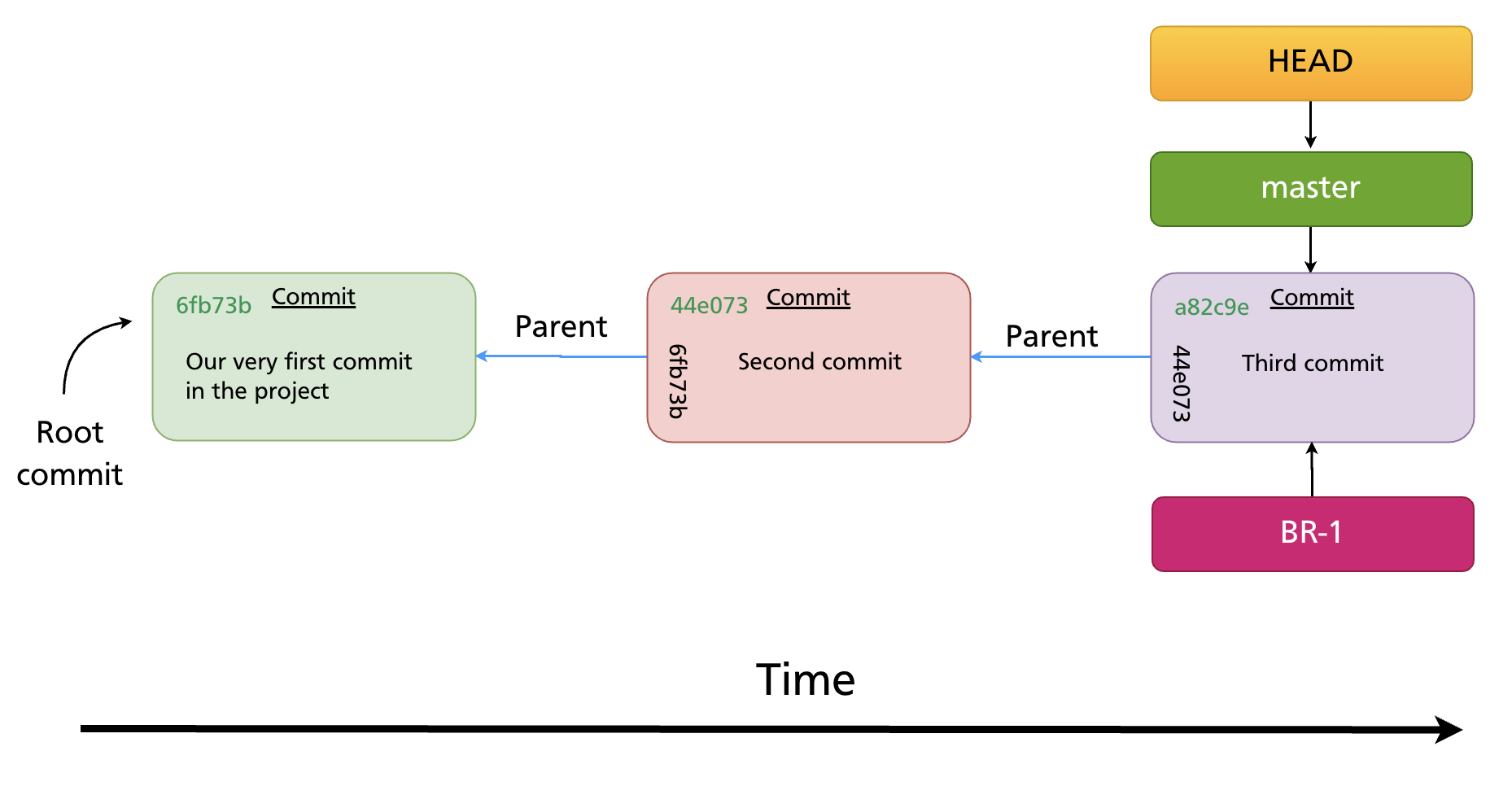

Creating a new branch BR-1 pointing to the same commit as master

The new branch starts at the same commit as the current branch — the two pointers are identical at creation time.

Switch to a branch

git checkout feature-x   # classic syntax (Git all versions)
git switch feature-x     # modern syntax (Git 2.23+)

Both update HEAD to point to feature-x and update the working directory to match that branch's commit.

Create and switch in one step

git checkout -b feature-x    # classic syntax
git switch -c feature-x      # modern syntax

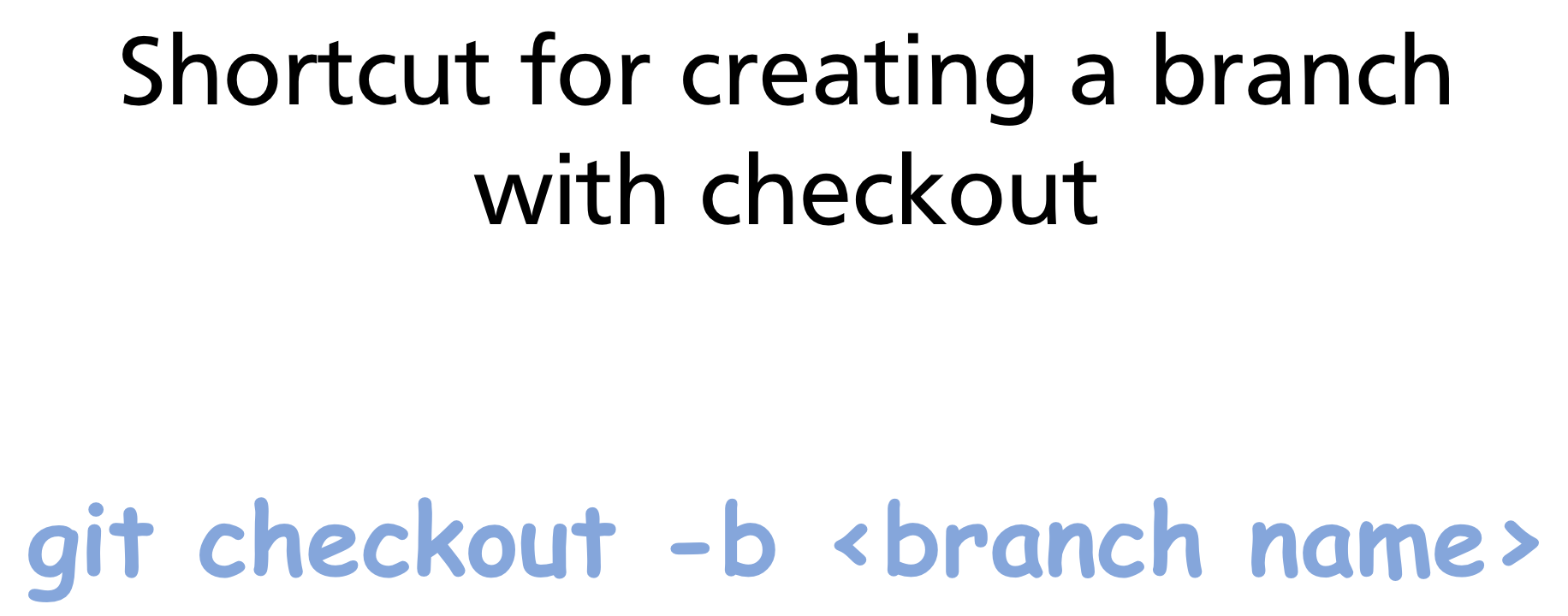

git checkout -b creates a branch and switches to it simultaneously

This is the most common way to start new work.

Rename a branch

git branch -m old-name new-name      # rename any branch
git branch -m new-name               # rename the current branch

Delete a branch

git branch -d feature-x      # delete a fully merged branch (safe)
git branch -D feature-x      # force-delete even if unmerged (data loss risk)

Tip: -d refuses to delete a branch whose commits are not reachable from any other branch. Use -D only when you are sure you no longer need that work.

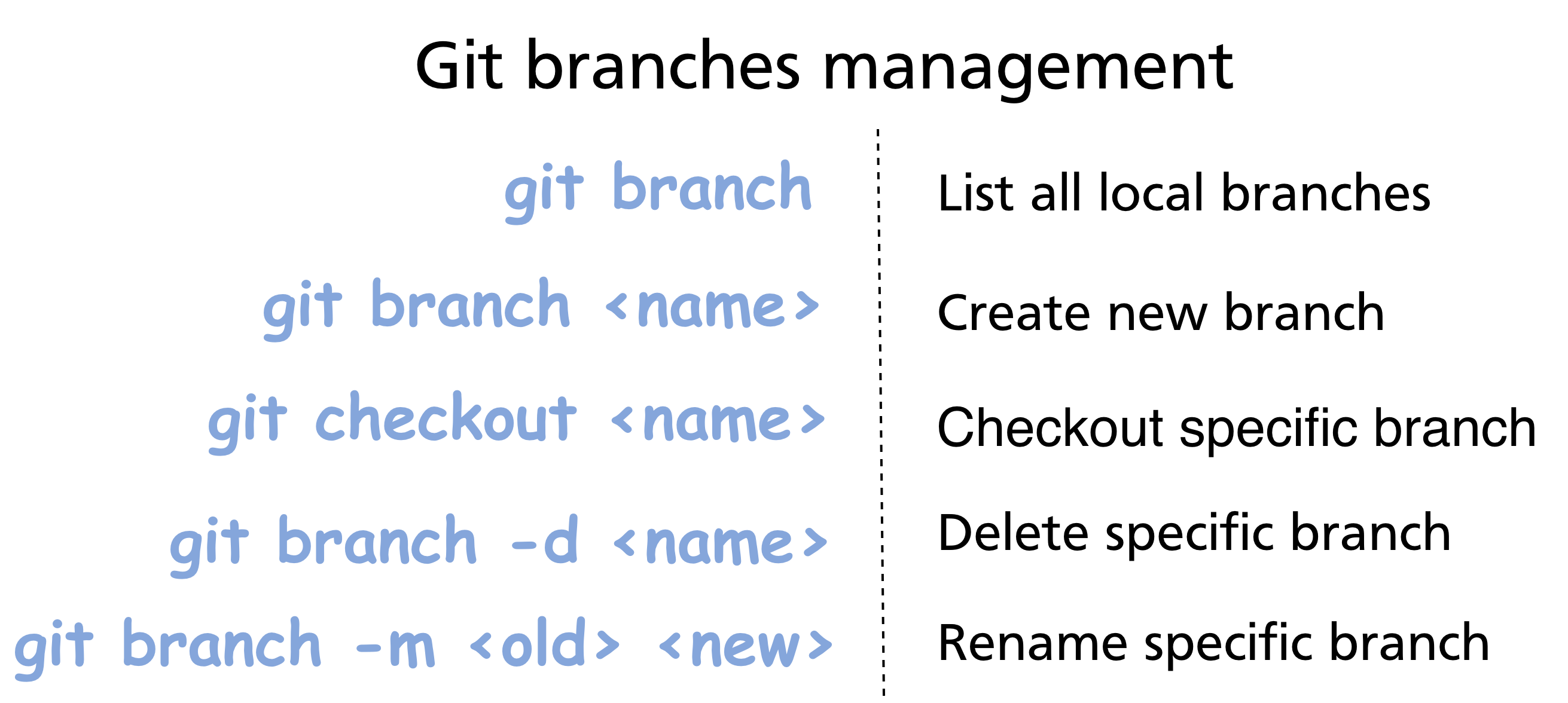

Branch management commands: branch, checkout, -d, -m

How Branches Diverge

Once you commit on a branch, its pointer advances while all other branch pointers stay put. This is how parallel development works.

Starting point: main and BR-1 both point to commit a82c9e.

After one commit on BR-1:

After a commit on BR-1, only BR-1's pointer advances; main stays at a82c9e

BR-1 now points to the new commit 285b13. main still points to a82c9e. The two branches have diverged. Future commits on either branch will continue diverging until the branches are merged (Chapter 12) or rebased (Chapter 13).

Git's Efficiency: Blob Reuse

Because branches are just pointers, switching branches does not duplicate files. Git also reuses blob objects (file content) across branches wherever the content is identical.

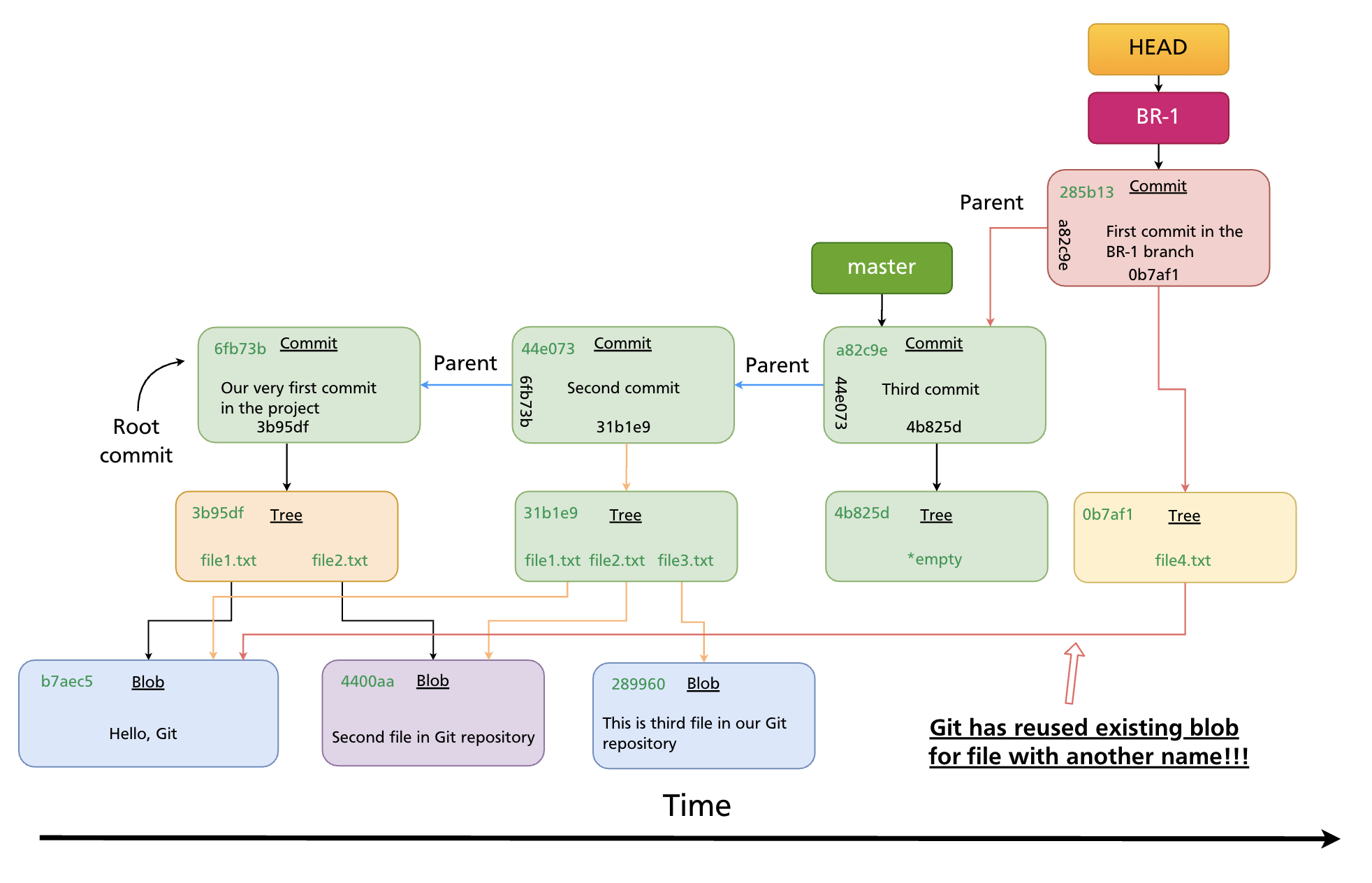

Git reuses the same blob object when a file with the same content appears in multiple branches

If two branches contain a file with identical content — even under different names — they share the same blob object in the object store. Git only stores each unique piece of content once. This is why repositories with many branches do not balloon in size.

git switch vs git checkout

Git 2.23 (released 2019) introduced git switch and git restore to split the responsibilities of git checkout, which had accumulated too many unrelated functions:

Task Modern syntax Classic syntax
Switch to a branch git switch <branch> git checkout <branch>
Create and switch git switch -c <branch> git checkout -b <branch>
Restore a file git restore <file> git checkout -- <file>
Detach HEAD at a commit git switch --detach <sha> git checkout <sha>

Both forms work in all modern Git versions. This manual uses the modern syntax going forward, with the classic equivalent noted where relevant.

Further reading: Git Branching — Branches in a Nutshell (Pro Git)

Summary

  • A branch is a lightweight text pointer to a commit SHA, stored in .git/refs/heads/.
  • HEAD points to the current branch (or directly to a commit in detached state).
  • When you commit, the active branch pointer advances automatically; HEAD stays on the same branch.
  • Creating a branch is instant and costs almost no storage.
  • git switch -c <name> (or git checkout -b <name>) creates and switches in one step.
  • Use git branch -d to safely delete merged branches; -D to force-delete.
  • Git reuses blob objects across branches — identical file content is never stored twice.
